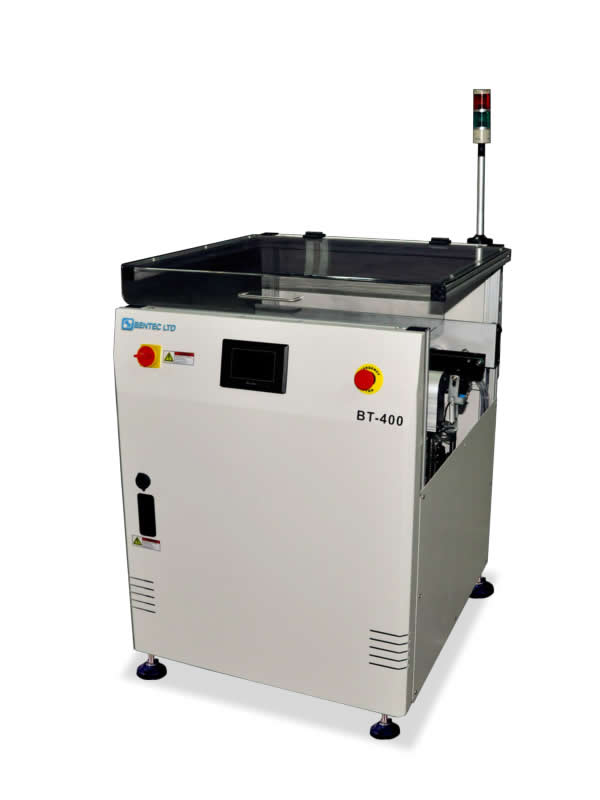

Bi-Level Conveyor
This unit is used between the SMT production line and the thru-hole production line with different conveying heights for PCB's or.
Standard Features
● Panason PLC Program control.
● User friendly “touch screen” control panel.
● Anti-static conveyor belt.
● Easy way of belt replacement.
● Cylinder stopper at entrance and exit.
● Lifting up/down distance can be set in touch screen.
● Step motor for conveyor, speed set in touch screen.
● Angle can be set in touchscreen. Angle range 3--7degree.
● Heavy bottom design to prevent shifting.
● PCB precise stopping in position.
● Smooth and parallel width adjustment.(lead screw)
● SMEMA compatible.
Technical Specifications
● Transport height: 1150±50mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt (or pin chain)
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Power supply 230VAC/50 Hz/1 Ph
● Power consumption: 400VA max. or specify
● Air supply: ≥6 bar
● Air consumption: 10 ltr/min max
● Lifting distance: 0-100mm adjustable
● Tilt angle: 3-7degree adjustable
Options
● Automatic width adjustment. (set in touchscreen)
● Cooling system.(0.5m long 4 fans / 1m long 8 fans or specify)
● Servo drive upgrade for shortened cycle time.
● Customized lifting distance and tilt angle.
● Other options available on request.
Specifications
| Model | BT400 |
|---|---|

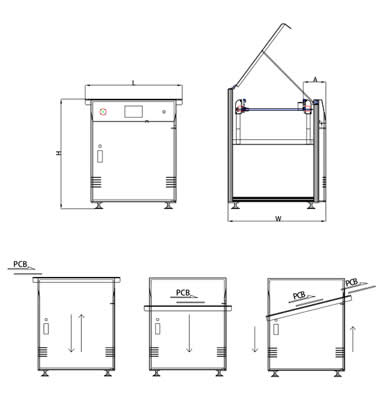

| Machine Dimension (L x W x H) | 800 x 980 x 1440 |
| Weight | 150kg |
| PCB length | 50mm - 530mm |
| PCB width | 50mm - 460mm |
| PCB Thinckness | 0.8mm - 4.0mm |
| Fixed rail to front dimension(A) | 188mm |
