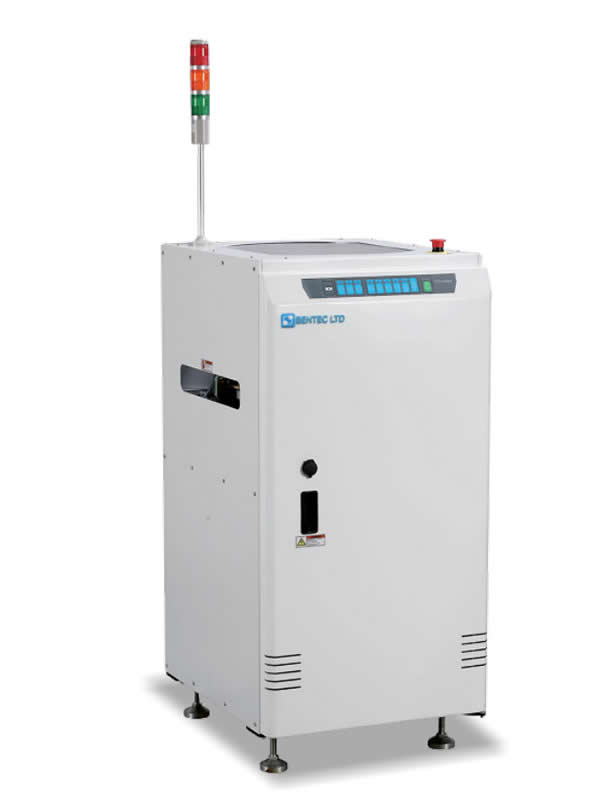

The turn conveyor is designed to change the flow direction of a PCB assembly line. The PCB is transferred onto the built-in ESD belt conveyor, which turns either clockwise or counter-clockwise.
● Panason PLC Program control.
● By-pass mode selectable.
● PCB direction flows can be customized.
● Towerlight display for machine status.
● Enclosed design with built-in torque limiter ensures highest level of safety.
● Conveyor width adjustment using hand crank.
● SMEMA compatible.
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD belt (round or flat)
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Power supply: 230 VAC/50 Hz/1 Ph
● Power consumption: 150VA max. or specify
● Cycle time: ± 5 seconds
● Automatic width adjustment. (set in touchscreen)
● Good or bad board separation.
● Touchscreen instead of button panel.
● Cantilevered input- or output conveyor (length 500mm).
● Other options available on request.
Model | TRC250M | TRC330L | TRC390LL | TRC460XL |
---|---|---|---|---|
Machine Dimension (L x W x H) | 500 x 500 x 1200 | 580 x 580 x 1200 | 700 x 700 x 1200 | 750 x 750 x 1200 |
Weight | 170kg | 190kg | 220kg | 260kg |
PCB length | 50mm - 330mm | 50mm - 450mm | 50mm - 530mm | 50mm - 530mm |
PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
PCB Thinckness | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm |
Magazine Dimensions (max.) | 355 x 320 x 560 | 460 x 400 x 560 | 535 x 460 x 570 | 535 x 530 x 570 |

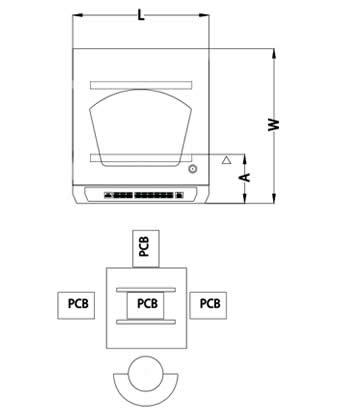

Fixed rail to front dimension(A) | 180mm | 180mm | 180mm | 180mm |
