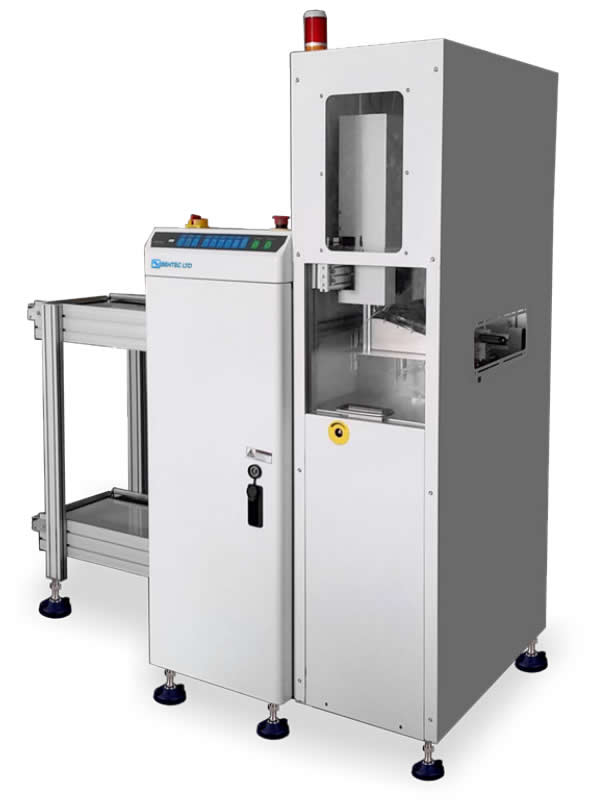

Vacuum And Magazine Combo Loader
The unit loads your production line automatically and It is equipped with two PCB loading modes and especially suitable for single-line mode which processes double-sided pcbs.
Standard Features
● Panasonic PLC Program control.
● Selectable pitch settings.
● Towerlight display for machine status.
● Binding function of vaccum loader and magazine loader.
● Vaccum loading,Magazine loading and alternated mode selectable.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Power supply: 230 VAC/50 Hz/1 Ph
● Power consumption: 500VA max. or specify
● Air supply: ≥6 bar
● Air consumption: 10 ltr/min max.
● PCB loading time: ±6 seconds
● Magazine change-over time: ±30 seconds
● Pitch distance: 10.20.30.40mm pitch or specify.
● Diameter sictopm pads: 15mm or specify.
● PCB thickness capability: 0.6-4.5mm.
● PCB stock capability: 125mm or specify.
● Total number of magazines: * 1 mgazine on the lifter platform.
* 1 empty magazine on the upper magazine conveyor.
* 1 full magazines on the lower magazine conveyor.
* or specify
Options
● Alternative suction cup size.
● Additional magazine capacity.
● Touchscreen instead of button panel.
● Enclosed construction improve level of safety.
● Other options available on request.
Specifications
| Model | LDC250M | LDC330L | LDC390LL | LDC460XL |
|---|---|---|---|---|

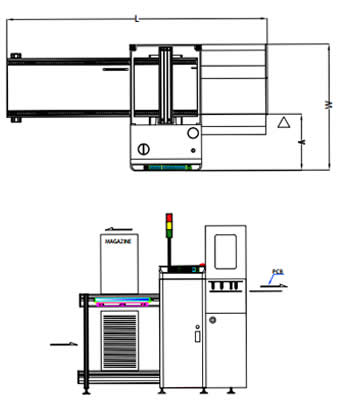

| Machine Dimension (L x W x H) | 1450 x 765 x 1520 | 1850 x 845 x 1520 | 2060 x 925 x 1520 | 2060 x 970 x 1520 |
| Weight | 210kg | 260kg | 310kg | 370kg |
| PCB length | 50mm - 330mm | 50mm - 445mm | 50mm - 530mm | 50mm - 530mm |
| PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm |
| Magazine Dimensions (max.) | 355 x 320 x 563 | 460 x 400 x 563 | 535 x 460 x 573 | 535 x 530 x 570 |
| Fixed rail to front dimension(A) | 340mm | 340mm | 340mm | 340mm |
