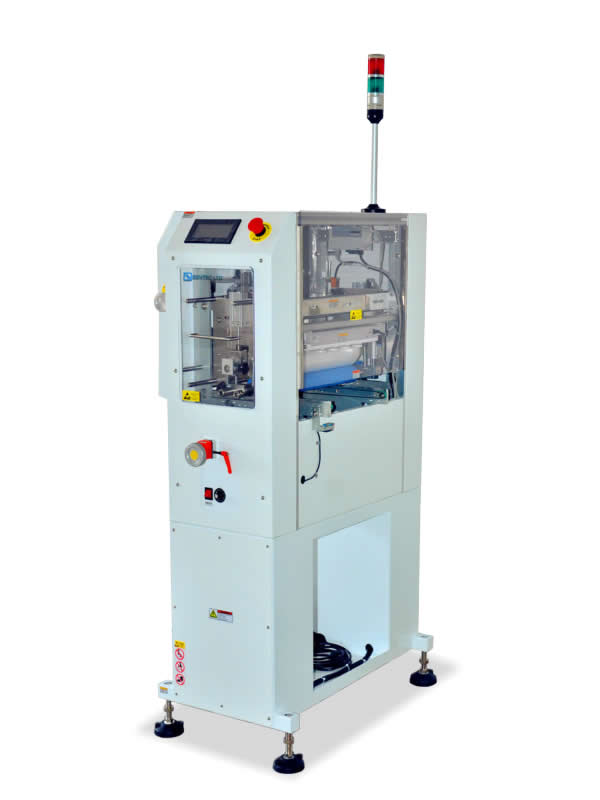

PCB Surface Cleaner
This unit can remove glass fiber, dust particles, etc. on top surface of PCB before solder paste printing, and improve production yield. Especially suitable for PCB's will which be mounted with extremely small.
Standard Features
● Panasonic PLC Program control.
● On-line automatic clean.
● All types of dust can be removed.

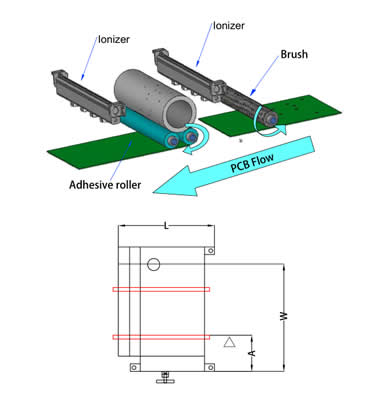

● Adhesive clean roll removes all dust from rolls.
● Ionizer removes electric static on the PWB.
● Draw-out design for Easy changing of adhesive rolls.
● Preset number of PCB & pre-warning counter to purge adhesive rolls.
● User friendly touch screen control panel.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Power supply 230 VAC/50 Hz/1 Ph
● Power consumption: 150VA max. or specify
● Air supply: 4-6 bar
● Air consumption: 2 ltr/min max.
● Cycle time: ±8 seconds
Options
● Double side PCB processing.
● Automatic conveyor width adjustment.
● Other options available on request.
Specifications
| Model | SPC250M | SPC330L | SPC390LL | SPC460XL |
|---|---|---|---|---|
| Machine Dimension (L x W x H) | 550 x 650 x 1350 | 550 x 680 x 1350 | 550 x 780 x 1350 | 550 x 850 x 1350 |
| Weight | 170kg | 185kg | 220kg | 260kg |
| PCB length | 50mm - 330mm | 50mm - 450mm | 50mm - 530mm | 50mm - 530mm |
| PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm |
| Fixed rail to front dimension(A) | 190mm | 190mm | 190mm | 190mm |
