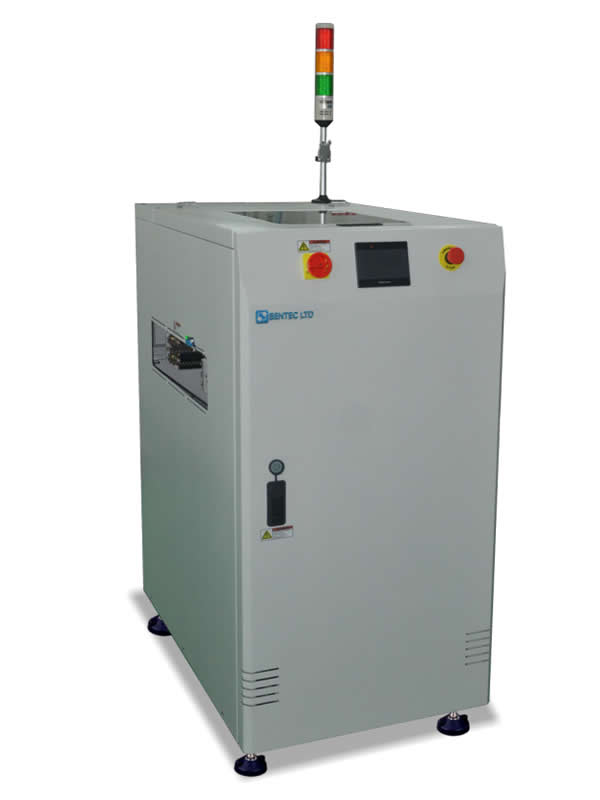

Inverter/Flip Conveyor

Inverter / Flip Conveyor

This unit is used to invert /flip PCB's (180°) for 'double-sided' process.

Standard Features

● Panason PLC Program control.

● By-pass mode selectable.

● Pneumatic stopper to keep PCB in position during inverting.

● Smooth and parallel width adjustment.(lead screw)

● SMEMA compatible.

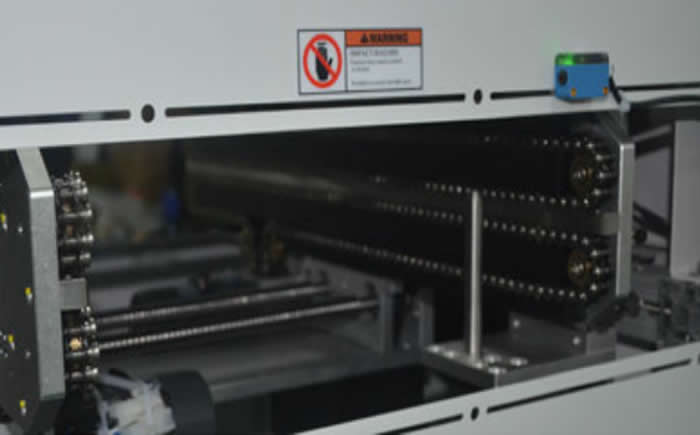

  • Optional Pin chain or roller chain conveyor

Technical Specifications

● Transport height: 950mm ±30mm

● Transfer direction: Left to right

● Operation side: Front of the machine

● Fixed rail: Front of the machine

● Interface: SMEMA

● Conveyer concept: ESD belt (round or flat)

● Belt speed: 0.5-20m/min adjustable

● PCB edge support: 3mm

● Power supply: 230 VAC/50 Hz/1 Ph

● Power consumption: 150VA max. or specify

● Air supply: 4-6 bar

● Air consumption: 1.1 ltr/min max.

● Cycle time: ± 8 seconds


● Automatic width adjustment. (set in touchscreen)

● Cantilevered input- or output conveyor (length 500 mm)

● Touchscreen instead of button panel.

● Other options available on request.



Model TRA250M TRA460XL

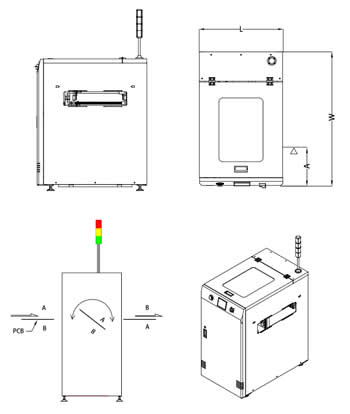

Machine Dimension (L x W x H) 500 x 750 x 1250 600 x 975 x 1250
Weight 120kg 185kg
PCB length 50mm - 330mm 50mm - 530mm
PCB width 50mm - 250mm 50mm - 460mm
Fixed rail to front dimension(A) 240mm 240mm
