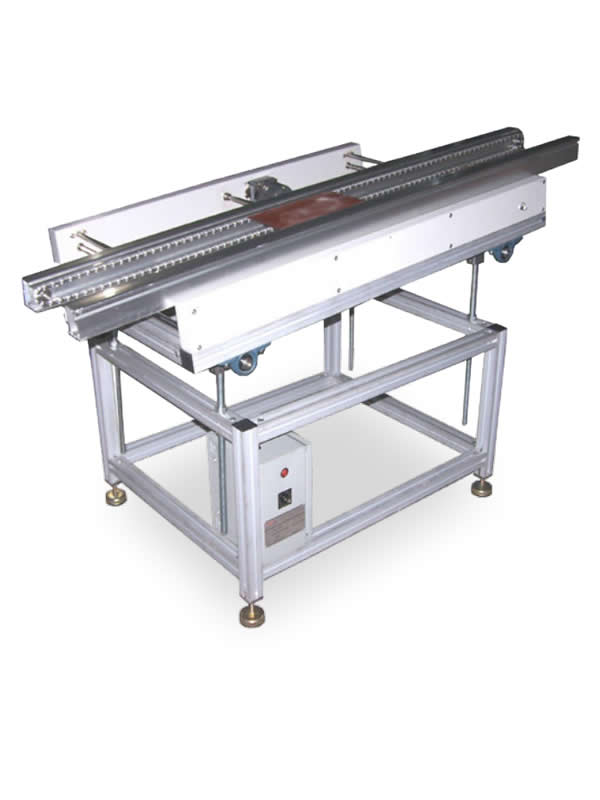

Wave Solder Inloading Conveyor

Wave Solder Inloading Conveyor

This conveyor is used to feed PCB’s or pallets into a wave soldering machine.

Standard Features

● 800mm Aluminum conveying guide rail.

● Pin chain (3mm or 5mm pins).

● Conveying motor with speed controller.

● Smooth and parallel width adjustment.(lead screw)

Technical Specifications

● Transport height: 800mm ±30mm

● Transfer direction: Left to right

● Operation side: Front of the machine

● Fixed rail: Front of the machine

● Interface: SMEMA

● Conveyer concept: Pin chain

● Belt speed: 0-2m/min adjustable

● PCB edge support: 5mm

● Power supply: 230 VAC/50 Hz/1 Ph

● Power consumption: 150VA max. or specify




Model MI-800

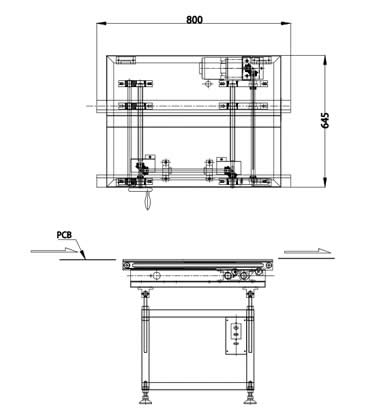

Machine Dimension (L x W x H) 800 x 645 x 750
Weight 60kg
PCB width 50mm - 400mm
Conveying height 800±50mm
