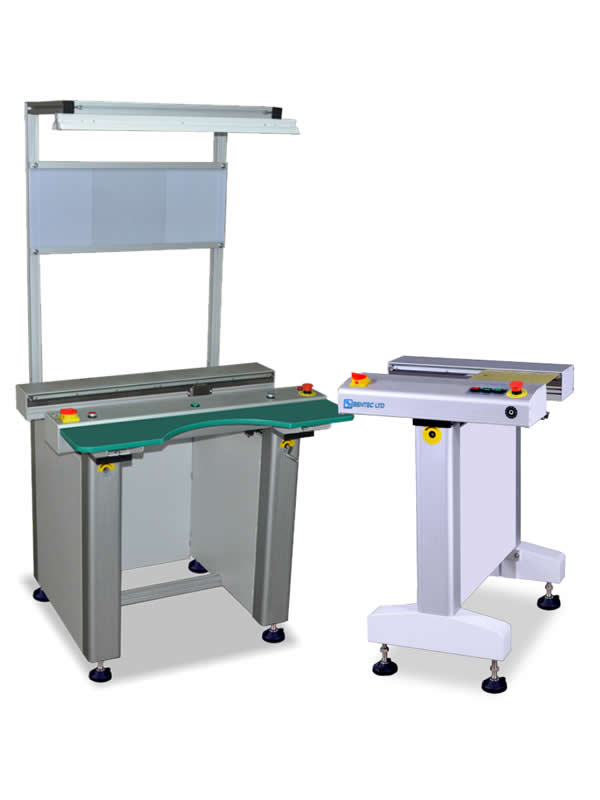

High Version Conveyor
This unit is used to link between production machines or board handling units.
Standard Features
● Panasonic PLC Program control.
● Start / Stop push button.
● Anti-static conveyor belt.
● Centre PCB stop position.
● Easy way of belt replacement.
● Inspect and by-pass mode selectable.
● Sturdy structure offers reliable operation in demanding production.
● PCB precise stopping in position.
● Smooth and parallel width adjustment.(lead screw)
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Components clearance: Bottom 30mm or specify
● Power supply: 230 VAC/50 Hz/1 Ph
● Power consumption: 100VA max. or specify
● Load bearing: 1.5kg/PCB
Options
● Light fixture.
● Additional working table.
● Non standard conveyor / segment lengths.
● Elecrical width adjustment.(control by button)
● Automatic width adjustment. (set in touchscreen)
● Dust cover.(customized length)
● Cooling system.(0.5m long 4 fans / 1m long 8 fans or specify)
● Other options available on request.
Specifications

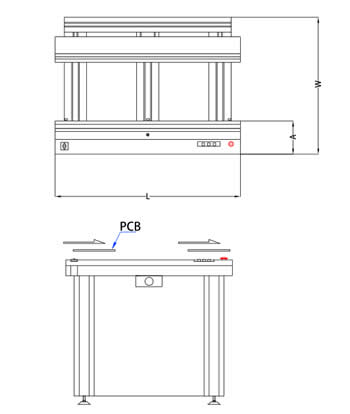

| Model | CYX330L (B) | CYX460XL (B) |
|---|---|---|
| Machine Dimension (L x W x H) | (B)x 750 x 920 | (B)x 880 x 920 |
| Weight | 85-100kg | 95-110kg |
| PCB length | 50mm - 445mm | 50mm - 457mm |
| PCB width | 50mm - 330mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm – 4.5mm | 0.6mm – 4.5mm |
| Fixed rail to front dimension(A) | 180mm | 180mm |
