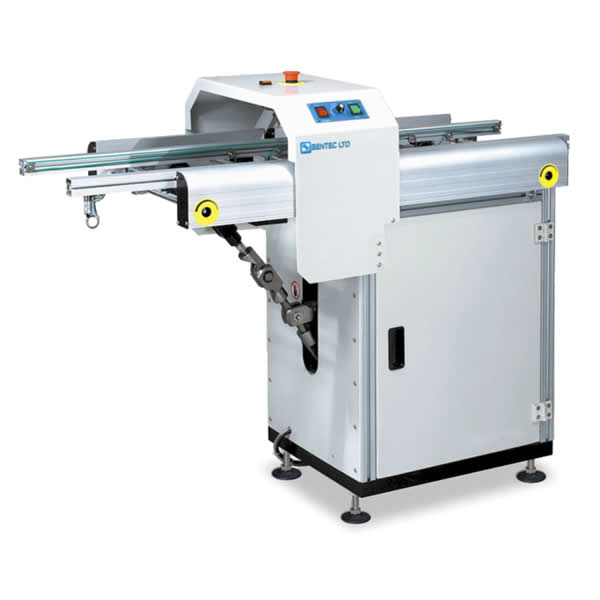

Lower Gate Conveyor
This unit is used when a passage way is required in a production line.
Standard Features
● Panasonic PLC Program control.
● Locking cylinder to avoid opening during PCB transfer.
● Ergonomic air pressure supported opening and closing.
● Automatic gate owering l by push button.
● Smooth and parallel width adjustment.(lead screw)
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Components clearance: Bottom 30 mm or specify
● Power supply: 230 VAC/50 Hz/1 Ph
● Power consumption: 100VA max. or specify
● Machine cycle time: ± 16 seconds
● Passageway: 600mm or specify
● Air supply: 4-6 bar
● Air consumption: 35 ltr /lift max.
● Load bearing: 1.5kg/PCB
Options
● Electrical width adjustment.
● Passageway length is customized.
● Other options available on request.
Specifications
| Model | CYG330L | CYG460XL |
|---|---|---|
| Machine Dimension (L x W x H) | 1300 x 560 x 1250 | 1300 x 720 x 1250 |
| Weight | 180kg | 230kg |
| PCB length | 50mm - 445mm | 50mm – 530mm |
| PCB width | 50mm - 330mm | 50mm – 460mm |
| PCB Thinckness | 0.6mm – 4.5mm | 0.6mm – 4.5mm |

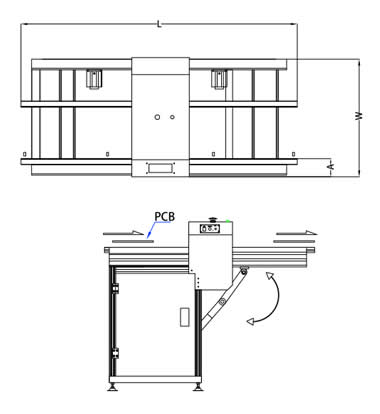

| Fixed rail to front dimension(A) | 86mm | 86mm |
