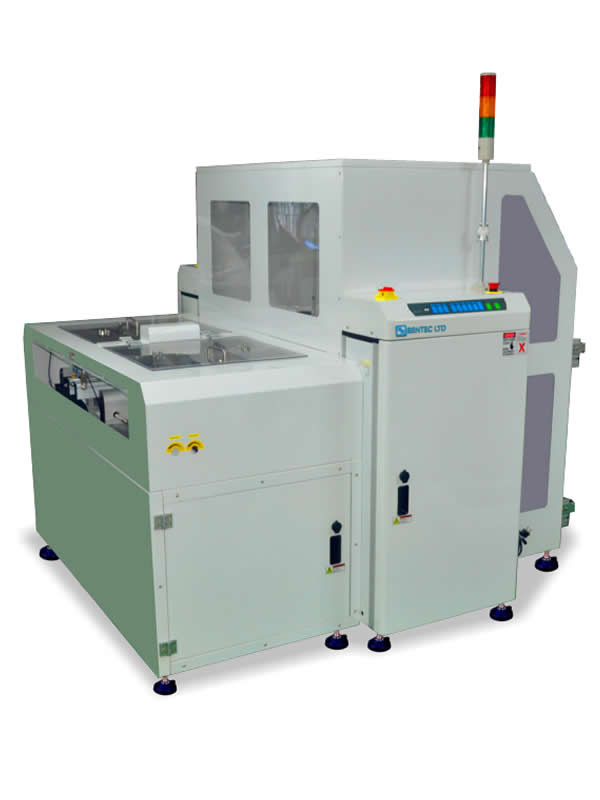

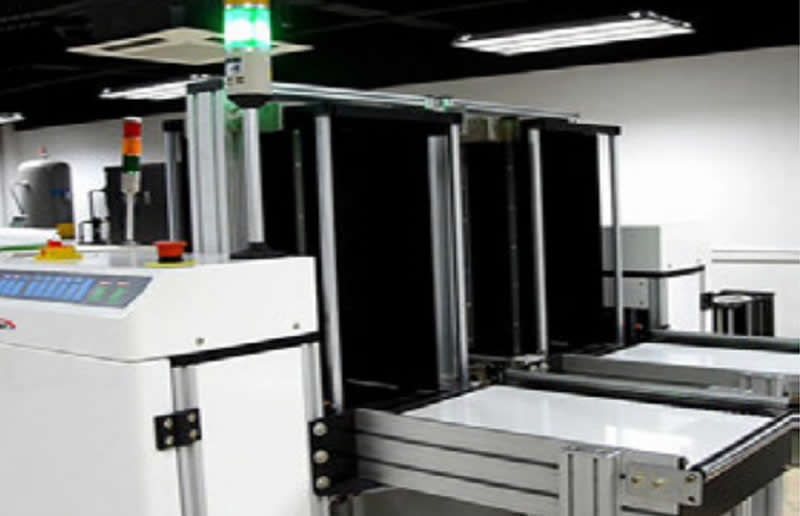

NG/OK Magazine Unloader

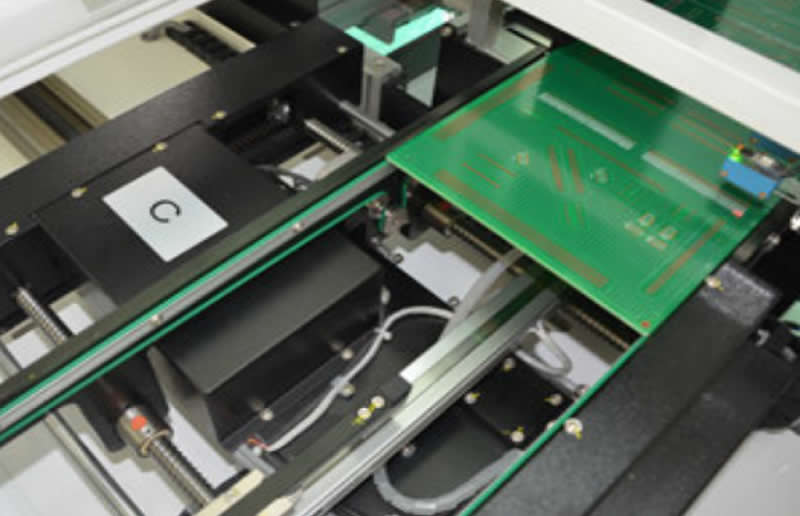

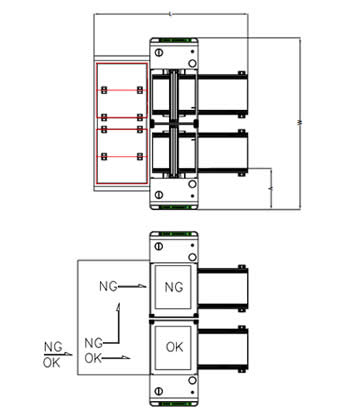

The PCB's are collected from upstream machine onto a shuttle conveyor and pushed into designated magazine. Shuttle conveyor moves sideways between upstream machine and magazines.
Standard Features
● Panasonic PLC Program control.
● Selectable pitch settings.
● Good or bad board separation.
● Unique guide rail driven positioning of shuttle conveyor.
● Towerlight display for machine status.
● Additional mgazines buffing capacity available upon request.
● Conveyor width adjustment using hand wheel.
● Automatic magazine alignment by upper- and lower pneumatic lamping.
● Regulated pressure on attached pneumatic pusher.
● User friendly “soft touch” LED membrane control panel.
● Pusher position adjustable to centre of the magazine.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD belt (round or flat)
● Belt speed: 16m /min
● PCB edge support: 3mm
● Components clearance: Top 30 mm, bottom 30mm (depends on pitch)
● Power supply: 230VAC/50 Hz/1 Ph
● Power consumption: 500VA max. or specify
● Air supply: 4-6 bar
● Air consumption: 10 ltr/min max.
● PCB loading time: ± 10 seconds
● Magazine change-over time: ± 30 seconds
● Pitch distance: 10.20.30.40mm pitch or specify.
● Max. total magazine weight: 50 kg each
* or specify
Options
● Automatic width adjustment for shuttle conveyor.
● Additional magazine capacity.
● Touchscreen instead of button panel.
● Enclosed construction improve level of safety.
● Other options available on request.
Specifications
| Model | ULDC250M | ULDC330L | ULDC390LL | ULDC460XL |
|---|---|---|---|---|
| Machine Dimension (L x W x H) | 1400 x 1550 x 1250 | 1850 x 1780 x 1250 | 2100 x 1860 x 1250 | 2100 x 2000 x 1250 |
| Weight | 220kg | 320kg | 380kg | 400kg |
| PCB length | 50mm - 330mm | 50mm - 445mm | 50mm - 530mm | 50mm - 530mm |
| PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm |
| Magazine Dimensions (max.) | 355 x 320 x560 | 460 x 400 x 560 | 535 x 460 x 570 | 535 x 530 x 570 |
| Fixed rail to front dimension(A) | 367mm | 367mm | 367mm | 367mm |
