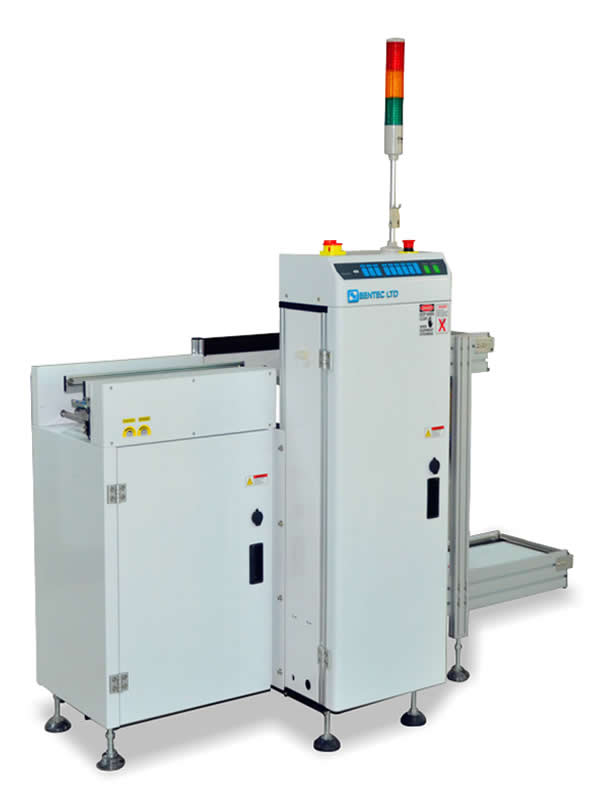

Multi Magazine Unloader
The unit provides automatic magazine change-over for continuous line unloading. PCB's are collected from an upstream pusher conveyor and pushed into the magazine. Full magazines are offl oaded at an ergonomic low level.
Standard Features
● Panasonic PLC Program control.
● Selectable pitch settings.
● Towerlight display for machine status.
● Automatic magazine change-over.
● Flexible platform to suit standard magazines.
● Conveyor width adjustment using hand crank.
● Regulated pressure on attached pneumatic pusher.
● Pusher position adjustable to centre of the magazine.
● User friendly “soft touch” LED membrane control panel.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD belt(round or flat)
● Belt speed: 16m /min
● PCB edge support: 3mm
● Components clearance: Top 30mm, bottom 30mm (depends on pitch)
● Power supply: 230VAC/50 Hz/1 Ph
● Power consumption: 350VA max. or specify
● Air supply: ≥6 bar
● Air consumption: 10 ltr/min max.
● PCB loading time: ±6 seconds
● Pitch distance: 10.20.30.40mm pitch or specify.
● Magazine change-over time: ± 30 seconds
● Total number of magazines: * 1 mgazine on the lifter platform.
* 1 empty magazine on the upper magazine conveyor
* 2 full magazines on the lower magazine conveyor
* or specify
Options
● Additional magazine capacity.
● Touchscreen instead of button panel.

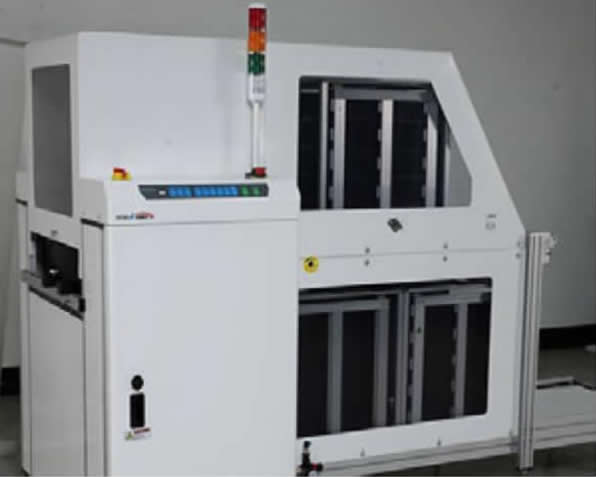

● Enclosed construction improve level of safety.
● Width adjustable magazine conveyor(s).
● Other options available on request.
Specifications
| Model | ULDB250M | ULDB330L | ULDB390LL | ULDB460XL |
|---|---|---|---|---|

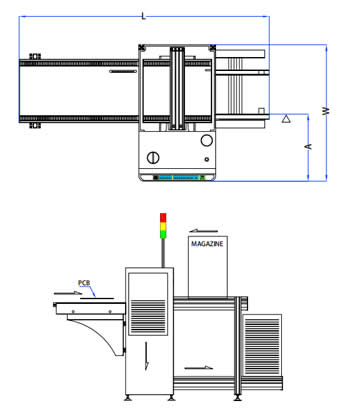

| Machine Dimension (L x W x H) | 1930 x 760 x 1250 | 2220 x 845 x 1250 | 2660 x 909 x 1250 | 2660 x 979 x 1250 |
| Weight | 160kg | 190kg | 230kg | 260kg |
| PCB length | 50mm - 330mm | 50mm - 445mm | 50mm - 530mm | 50mm - 530mm |
| PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm |
| Magazine Dimensions (max.) | 355 x 320 x 563 | 460 x 400 x 563 | 535 x 460 x 570 | 535 x 530 x 570 |
| Fixed rail to front dimension(A) | 364mm | 364mm | 364mm | 364mm |
