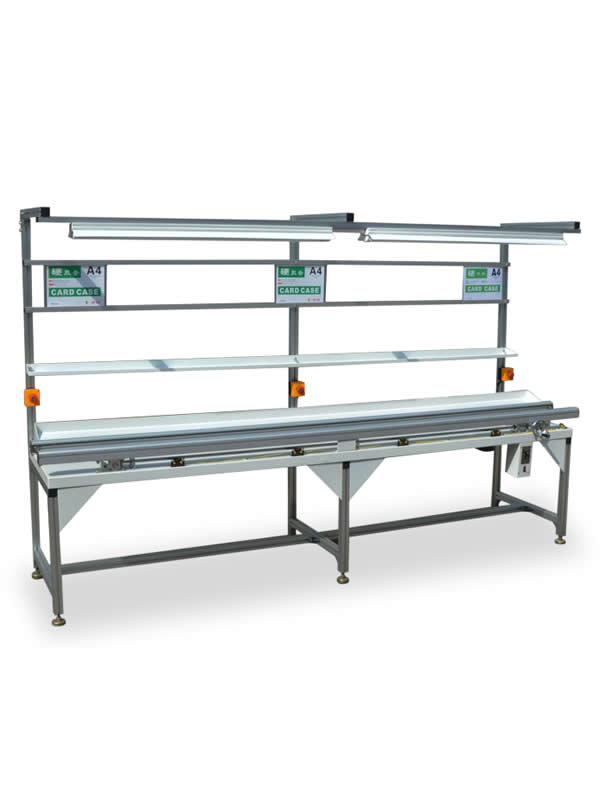

Insertion Conveyor

Insertion Conveyor

This unit is used to transport's PCB and pallets for an electronic production assembly line.

Standard Features

● Aluminum conveying guide rail.

● Conveyor width adjustment using hand crank.

● Conveying motor driven by invertor.

● Equipped with LED light.

● Equipped with 2 component trays.

● Equipped with process card bracket.

● 35B pin chain(5mm).

Technical Specifications

● Transport height: 800±20mm or Specify

● Transfer direction: Left to right

● Operation side: Front of the machine

● Conveyer concept: Pin chain

● Belt speed: 0-5m/min adjustable

● Power supply: 220VAC/50 Hz/1 Ph

● Power consumption: 150VA max. or specify


● Manual stop switch button.

● ESD ground socket.

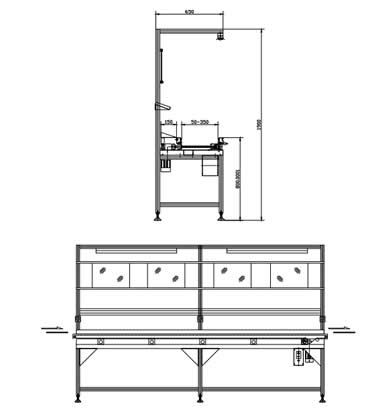

Model MI-3000
Machine Dimension (L x W x H) 3000 x 650 x 1900
Weight 85kg
PCB width Max 350mm
