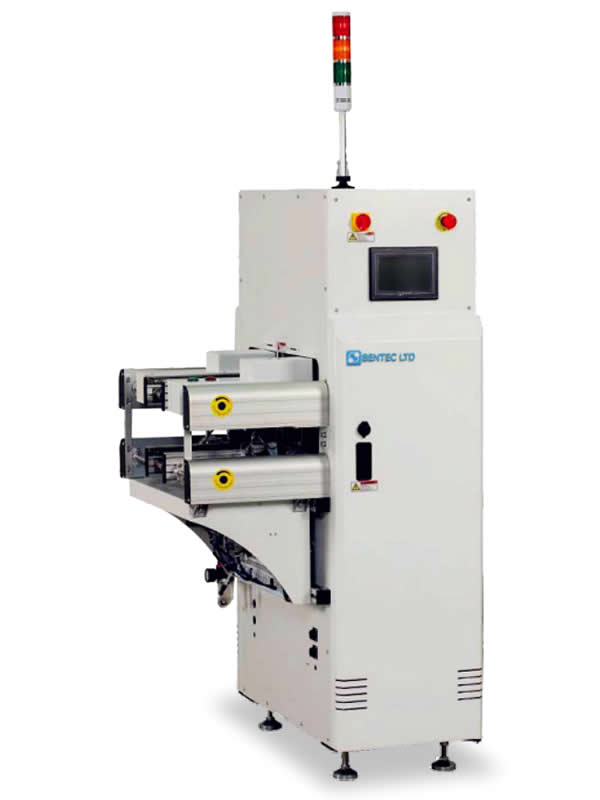

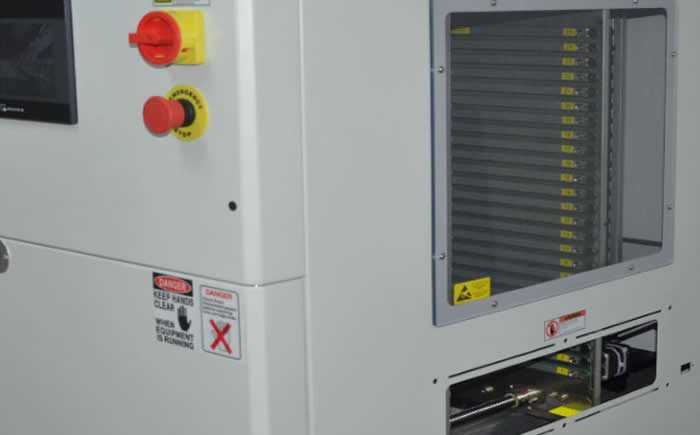

NG OK Vertical Buffer
The NG OK vertical buffer is designed to buffer NG and OK board after inspection machine (AOI / SPI) and pass a OK board to next process.NG board will go to the upper conveyor for visual check.
Standard Features

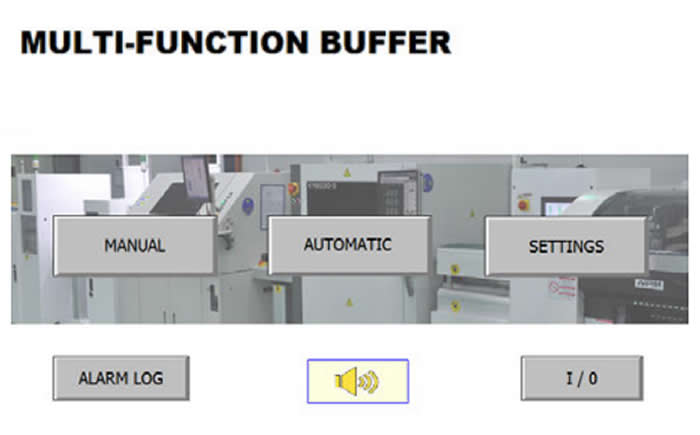

● Panasonic PLC Program control.

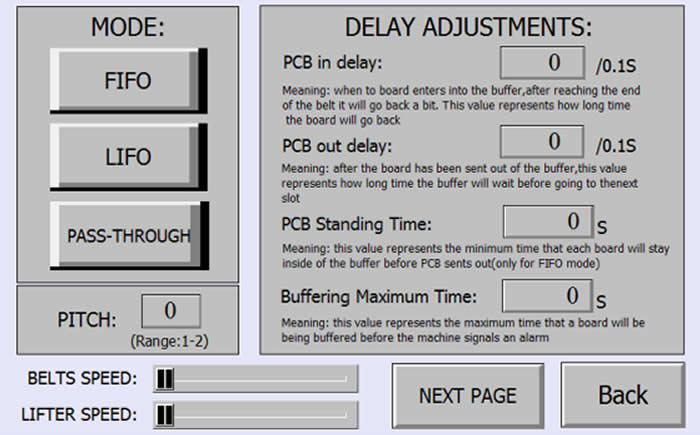

● Selectable FIFO, LIFO and by-pass mode.
● Selectable pitch settings.
● Input conveyor is standard included.
● Conveyor width adjustment using hand wheel.
● Threshold signal to protect PCB's in upstream oven.
● NG/OK table provides easy access to the NG PCBs
● Towerlight display for machine status.
● Good or bad board separation.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Power supply: 230 VAC/50 Hz/1 Ph
● Power consumption: 250 VA max
● Air supply: 4-6 bar
● Air consumption: 15 ltr/min max
● Cycle time: ±15 seconds
● Pitch distance: 20mm or specify
● Buffer capacity: 25 PCBs or specify
Options
● Additional PCB boards capacity.
● Automatic conveyor width adjustment.
● Cantilevered output conveyor. (length 500 mm)
● Other options available on request.
Specifications
| Model | STD250M | STD330L | STD390LL | STD460XL |
|---|---|---|---|---|
| Machine Dimension (L x W x H) | 1000 x 950 x 1560 | 1100 x 1075 x 1560 | 1200 x 1280 x 1560 | 1200 x 1350 x 1560 |
| Weight | 150kg | 220kg | 280kg | 280kg |
| PCB length | 50mm - 330mm | 50mm - 455mm | 50mm - 530mm | 50mm - 530mm |
| PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm - 4.0mm | 0.6mm - 4.0mm | 0.6mm - 4.0mm | 0.6mm - 4.0mm |

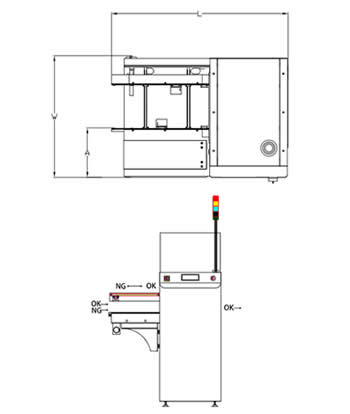

| Fixed rail to front dimension(A) | 270mm | 270mm | 270mm | 270mm |
