Inspection Conveyor

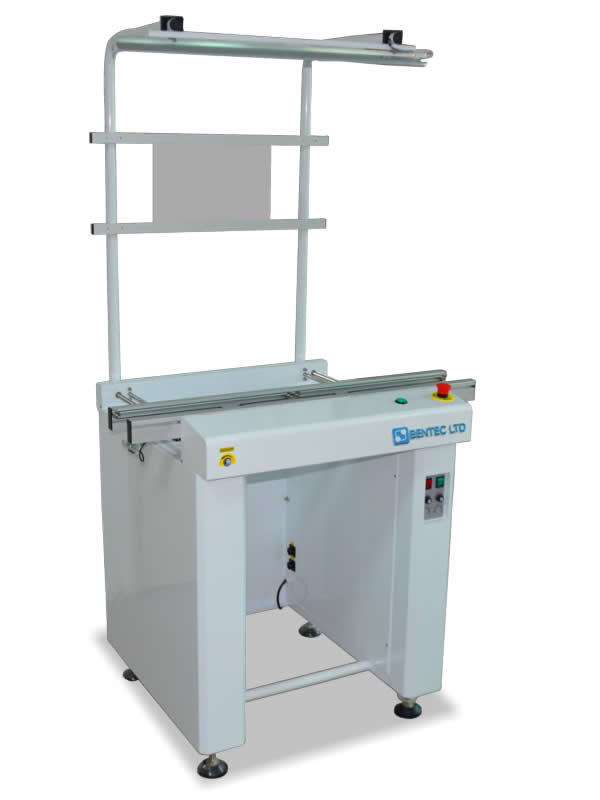

The inspection conveyor is used when frequent visual inspection of PCB’s is required in the PCB assembly line.
Standard Features
● Pannasonic PLC Program control.
● Overhead lighting.

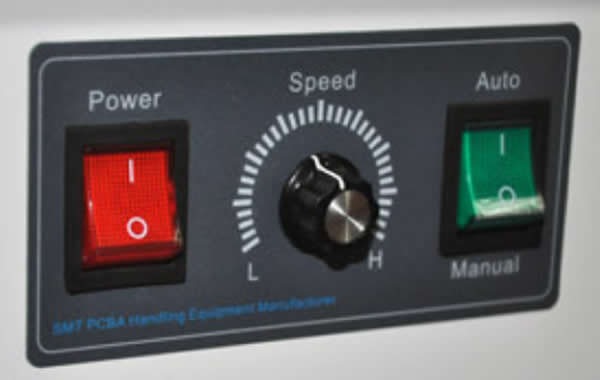

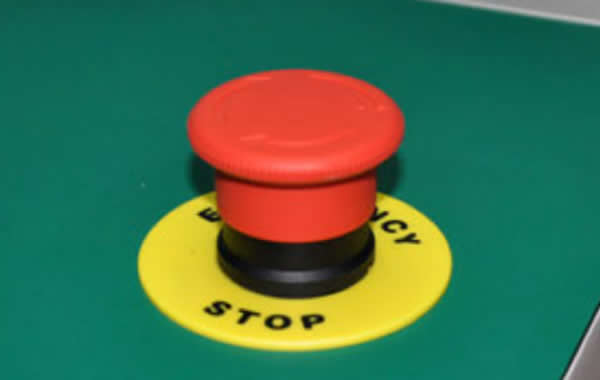

● Start / Stop push button.
● Anti-static conveyor belt.
● Centre PCB stop position.
● Easy way of belt replacement.
● Work and by-pass mode selectable.
● Heavy bottom design to prevent shifting.

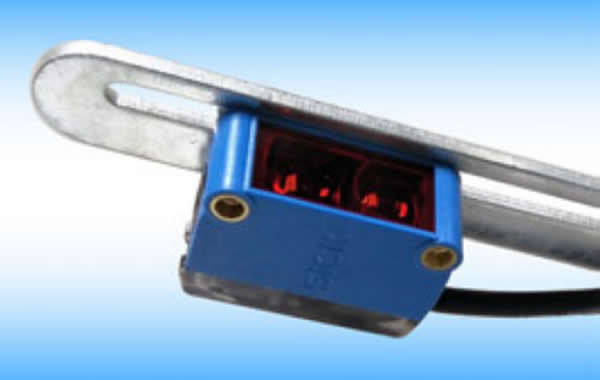

● PCB precise stopping in position.

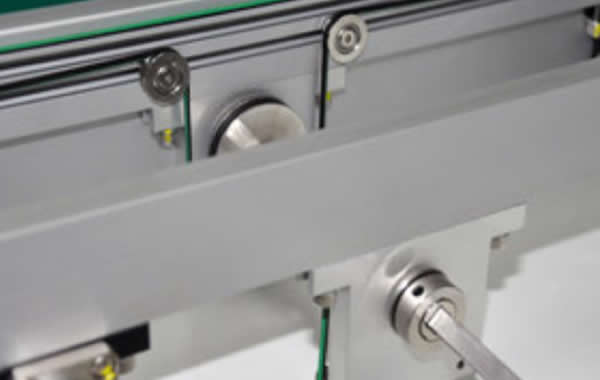

● Smooth and parallel width adjustment.(lead screw)
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Components clearance: Bottom 30mm or specify
● Power supply: 230VAC/50 Hz/1 Ph
● Power consumption: 120VA max
● Load bearing: 1.5kg/PCB
Options
● Non standard conveyor / segment lengths.
● Eelectrical width adjustment.
● Dust cover.(customized length)
● Cooling system.(0.5m long 4 fans / 1m long 8 fans or specify)
● Other options available on request.
Specifications
| Model | CYB330L (B) | CYB460XL (B) |
|---|---|---|
| Machine Dimension (L x W x H) | (B)x 750 x 920 | (B)x 850 x 920 |
| Weight | 70-100kg | 90-130kg |
| PCB length | 50mm - 445mm | 50mm – 457mm |
| PCB width | 50mm - 330mm | 50mm – 460mm |
| PCB Thinckness | 0.6mm – 4.5mm | 0.6mm – 4.5mm |
| Fixed rail to front dimension(A) | 230mm | 230mm |
