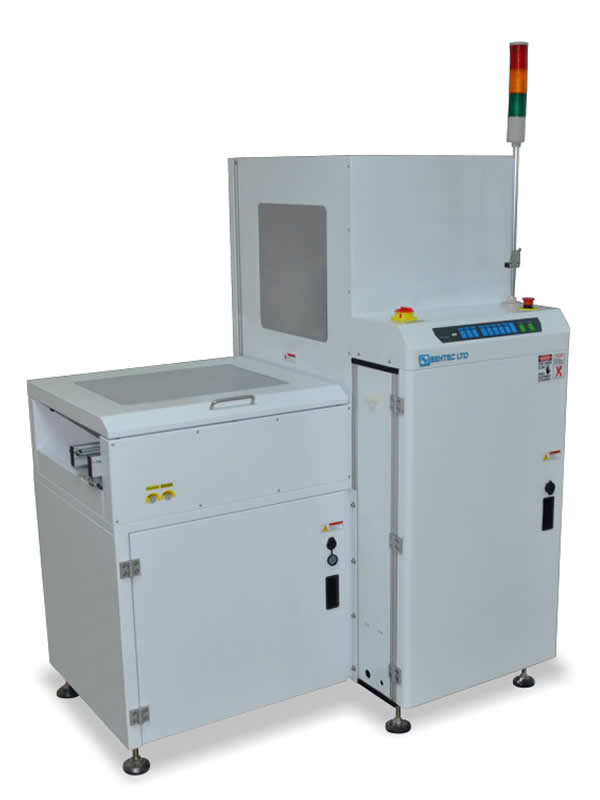

Single Magazine Unloader
The PCB's are collected from upstream machine using attached conveyor and pushed into the magazine.
Standard Features
● Panasonic PLC Program control.
● Selectable pitch settings.
● Towerlight display for machine status.
● Flexible platform to suit standard magazines.
● Exchange magazine from the rear of the machine.
● Regulated pressure on attached pneumatic pusher.
● Pusher position adjustable to centre of the magazine.
● User friendly “soft touch” LED membrane control panel.
● Magazine is manually placed on the platform and clamped in position.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 16m /min
● PCB edge support: 3mm
● Components clearance: Top 30mm, bottom 30mm (depends on pitch)
● Power supply: 230 VAC/50 Hz/1 Ph
● Power consumption: 350VA max. or specify
● Air supply: ≥6 bar
● Air consumption: 10 ltr/min max.
● PCB loading time: ±6 seconds
● Pitch distance: 10.20.30.40mm pitch or specify.
● Total number of magazines: * 1 mgazine on the lifter platform.
* or specify

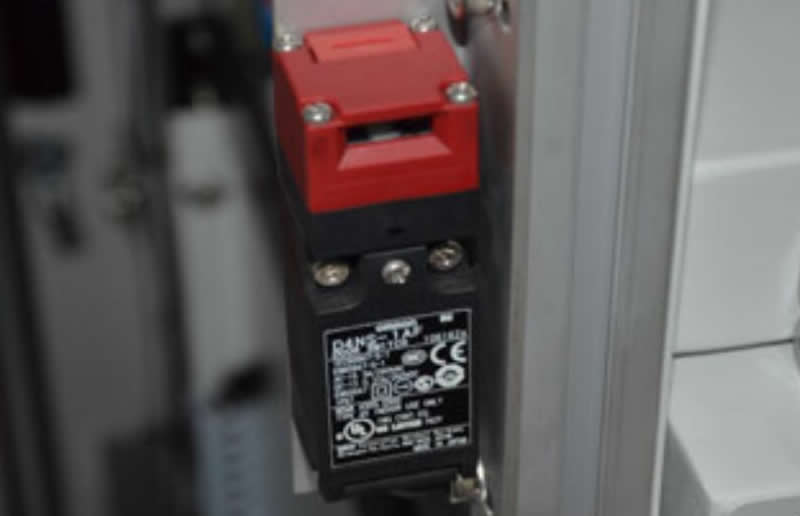

Options
● Touchscreen instead of button panel.
● Auto width adjustment (set in touchscreen)
● Other options available on request.

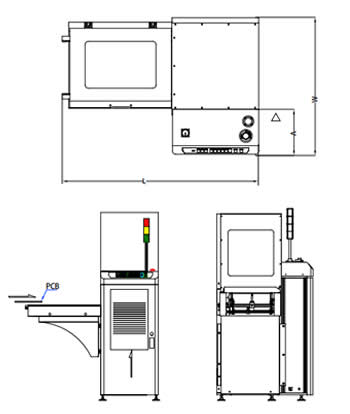

Specifications
| Model | ULDA250M | ULDA330L | ULDA390LL | ULDA460XL |
|---|---|---|---|---|
| Machine Dimension (L x W x H) | 1200 x 800 x 1700 | 1300 x 915 x 1700 | 1450 x 1000 x 1700 | 1450 x 1080 x 1700 |
| Weight | 215kg | 255kg | 300kg | 345kg |
| PCB length | 50mm - 330mm | 50mm - 445mm | 50mm - 530mm | 50mm - 530mm |
| PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm |
| Magazine Dimensions (max.) | 355 x 320 x 563 | 460 x 400 x 563 | 535 x 460 x 570 | 535 x 530 x 570 |
| Fixed rail to front dimension(A) | 372mm | 372mm | 372mm | 372mm |
