LIFO Vertical Buffer

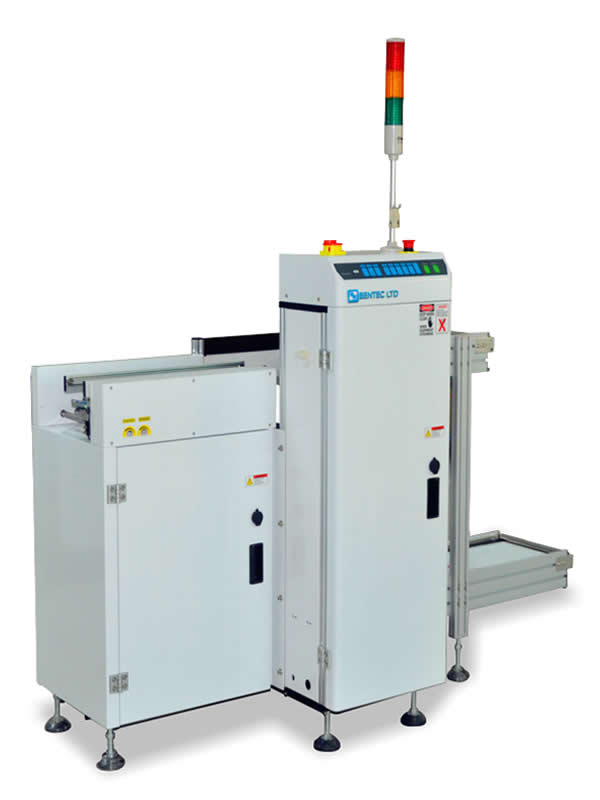

This unit allows buffering of PCB's in LIFO mode. It uses belt segments to hold the PCB over its complete lenght. When adding or extracting a PCB to/from the buffer a drive mechanism engages with the belt segment to smoothly transfer the PCB in- or out.
Standard Features
● Panasonic PLC Program control.
● Buffer in LIFO and by-pass mode.
● Selectable pitch settings.

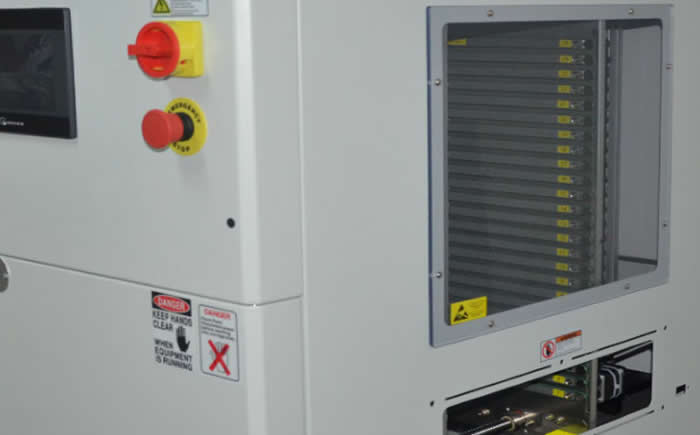

● Enclosed construction improve level of safety.
● The status of each slot can be changed independently.
● Conveyor width adjustment using hand wheel.
● Threshold signal to protect PCB's in upstream oven.

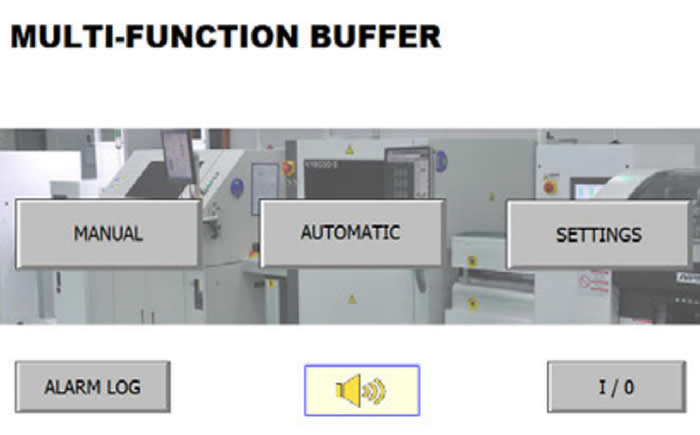

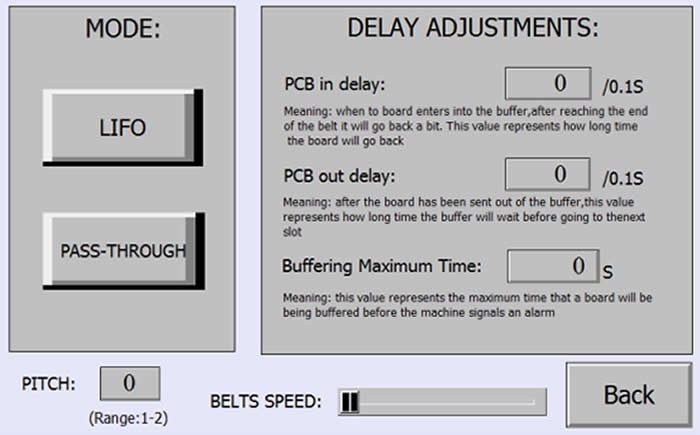

● User friendly touchcreen control panel.
● Towerlight display for machine status.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Power supply: 230VAC/50 Hz/1 Ph
● Power consumption: 250VA max. or specify
● Air supply: 4-6 bar
● Air consumption: 15 ltr/min max.
● Cycle time: ± 15 seconds
● Pitch distance: 20mm or specify
● Buffer capacity: 25 PCBs or specify
Options
● Automatic width adjustment (set in touchscreen).
● Additional PCB boards capacity.
● Cantilevered input- or output conveyor (length 500mm).
● Other options available on request.
Specifications
| Model | STB330L | STB460XL |
|---|---|---|

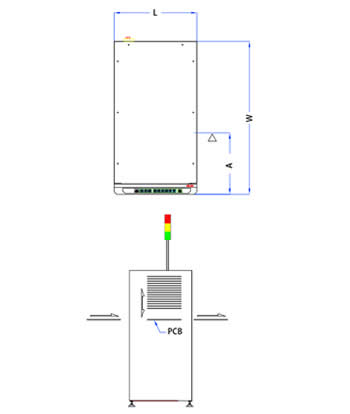

| Machine Dimension (L x W x H) | 485 x 950 x 1680 | 650 x 1150 x 1680 |
| Weight | 150kg | 210kg |
| PCB length | 50mm - 380mm | 50mm - 530mm |
| PCB width | 50mm - 330mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm - 4.0mm | 0.6mm - 4.0mm |
| Fixed rail to front dimension(A) | 270mm | 270mm |
