Multi Magazine Loader
The unit loads your production line automatically by pushing PCB's out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
Standard Features
● Panasonic PLC Program control.
● Selectable pitch settings.
● Towerlight display for machine status.
● Automatic magazine change-over.
● Flexible platform to suit standard magazines.
● Regulated pressure on attached pneumatic pusher.
● Pusher position adjustable to centre of the magazine.
● User friendly “soft touch” LED membrane control panel.
● Automatic magazine alignment by upper and lower pneumatic clamping.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Power supply: 230VAC/50 Hz/1 Ph
● Power consumption: 350VA max. or specify
● Air supply: ≥6 bar
● Air consumption: 10 ltr/min max.
● PCB loading time: ±6 seconds
● Magazine change-over time: ±30 seconds
● Pitch distance: 10.20.30.40mm pitch or specify.
● Total number of magazines: * 1 mgazine on the lifter platform.
* 1 empty magazine on the upper magazine conveyor
* 2 full magazines on the lower magazine conveyor
* or specify
Options
● Width adjustable magazine conveyor(s).
● Additional magazine capacity.
● Touchscreen instead of button panel.

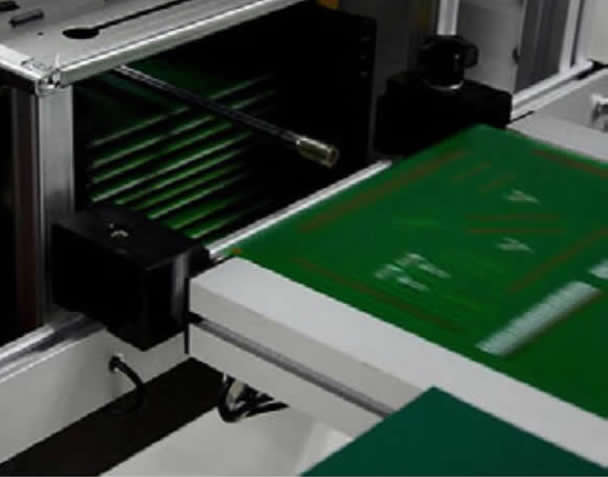

● Enclosed construction improve level of safety.
● Other options available on request.
Specifications

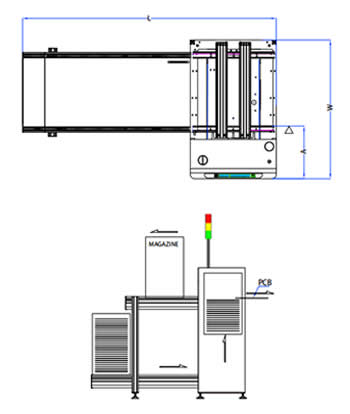

| Model | LDB250M | LDB330L | LDB390LL | LDB460XL |
|---|---|---|---|---|
| Machine Dimension (L x W x H) | 1330 x 765 x 1350 | 1650 x 845 x 1350 | 1920 x 920 x 1350 | 1920 x 1000 x 1350 |
| Weight | 140kg | 180kg | 220kg | 240kg |
| PCB length | 50mm - 330mm | 50mm - 445mm | 50mm - 530mm | 50mm - 530mm |
| PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm | 0.6mm - 4.5mm |
| Magazine Dimensions (max.) | 355 x 320 x 563 | 460 x 400 x 563 | 535 x 460 x 573 | 535 x 530 x 570 |
| Fixed rail to front dimension(A) | 340mm | 340mm | 340mm | 340mm |
