Reject Conveyor

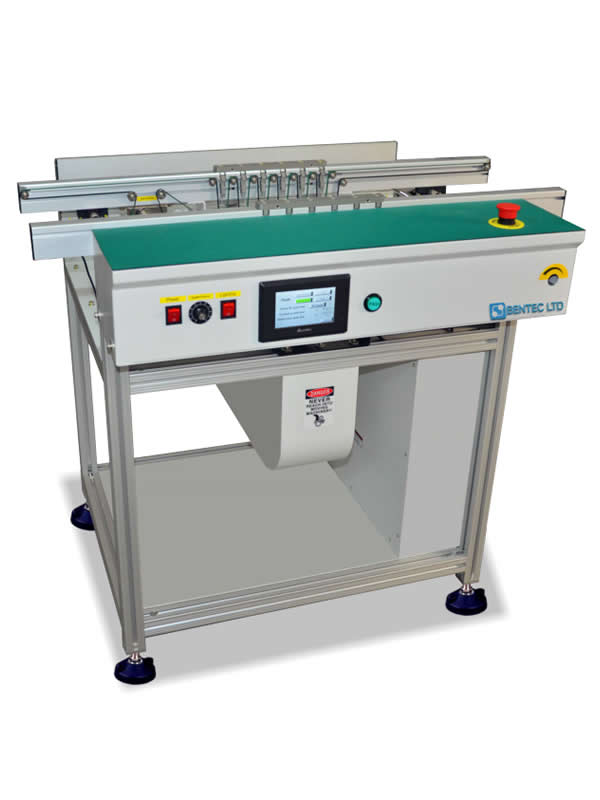

The unit is installed after AOI for separated NG board for visual inspect and good board will pass through without stopping.

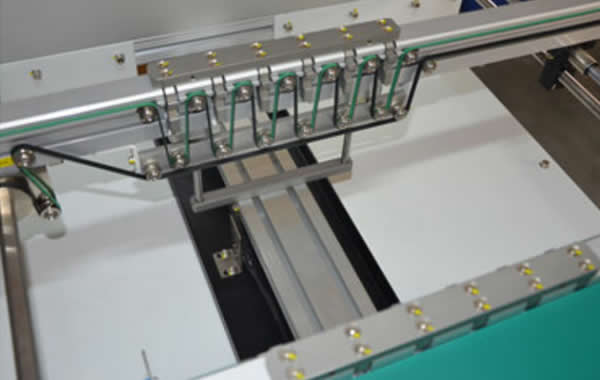

Standard Features
● Panasonic PLC Program control.
● Start / Stop push button.
● Anti-static conveyor belt.
● Centre PCB stop position.
● Touchscreen control pannel.
● Easy way of belt replacement.
● Reject and by-pass mode selectable.
● Heavy bottom design to prevent shifting.
● PCB precise stopping in position.
● Smooth and parallel width adjustment.(lead screw)
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Components clearance: Bottom 30 mm or specify
● Power supply: 230 VAC/50 Hz/1 Ph
● Power consumption: 100VA max. or specify
● Load bearing: 1.5kg/PCB
● Buffering capacity: 1 PCB or specify.
Options
● Automatic width adjustment (set in touchscreen)
● Light fixture with tower light.
● Additional lift positions for extra buffer capacity.
● Other options available on request.
Specifications
| Model | CYC330L (B) | CYC460XL (B) |
|---|---|---|
| Machine Dimension (L x W x H) | (B)x 739 x 960 | (B)x 950 x 960 |
| Weight | 70-95kg | 90-115kg |
| PCB length | 50mm - 457mm | 50mm – 530mm |
| PCB width | 50mm - 330mm | 50mm – 460mm |
| PCB Thinckness | 0.6mm – 4.5mm | 0.6mm – 4.5mm |
| Fixed rail to front dimension(A) | 230mm | 230mm |
