Coating Conveyor

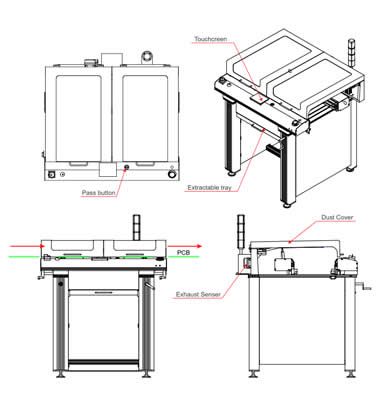

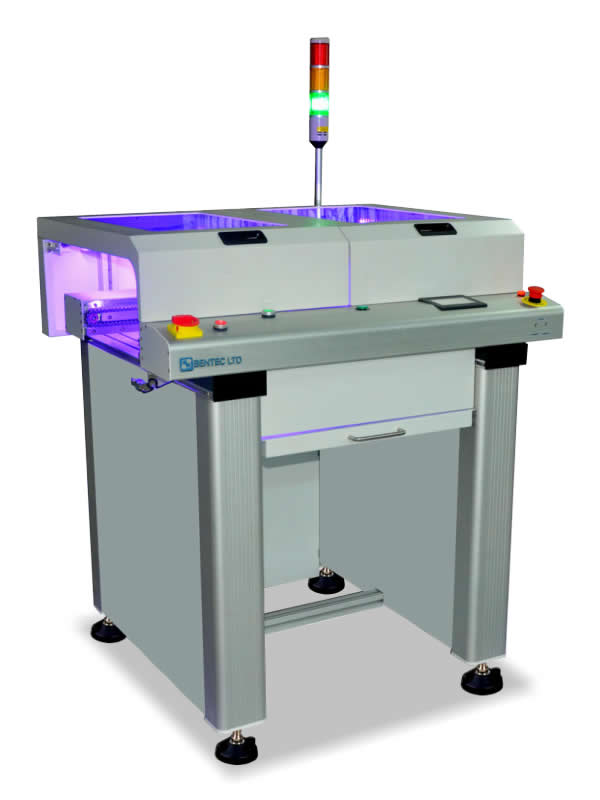

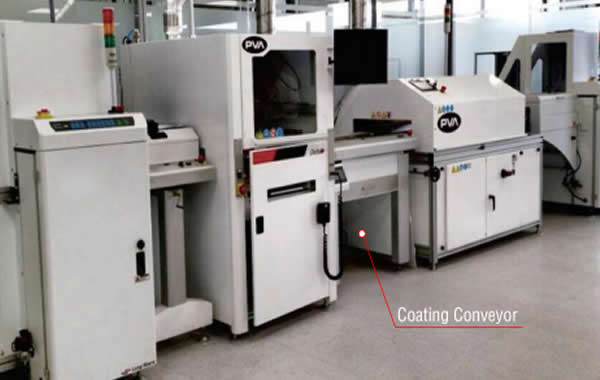

This unit is used as a visual inspection station for operators controlling the boards right after a conformal coating line.
Standard Features

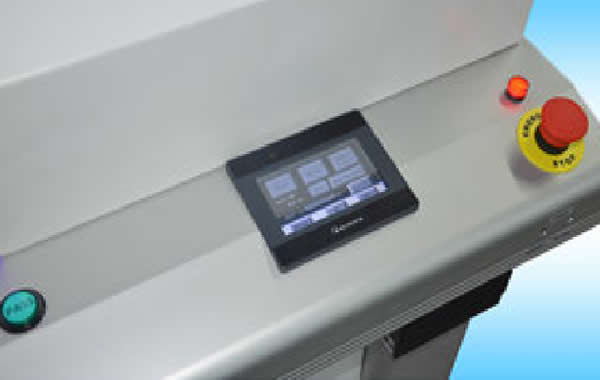

● Modular design, PLC + Touch Screen control.
● Stability enhanced by heavy design.
● Beautiful design with aluminum finishings.
● Smooth and parallel width adjustment. (stainless steel screws)
● Covers which protect the boards against dust.
● 2-segments with independent flash-off time. (programmable)
● Automatic/Manual modes with inspection button.
● Independent variable speed controls for each rail.

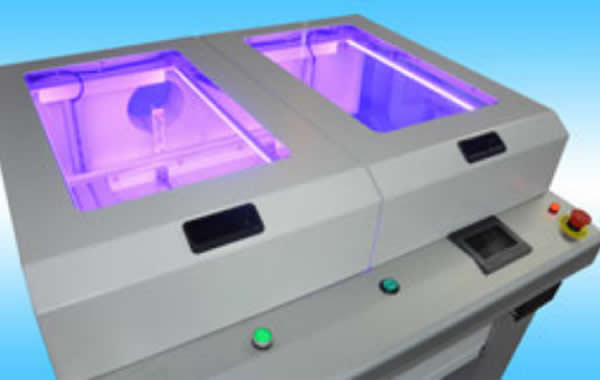

● UV lights to analyze the coating result over the boards.
● Extractable tray for easy clean-up of coating droplets.
● Automatic width adjustment by touch screen.
● Exhaust sensor which forces to use air extraction.
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA

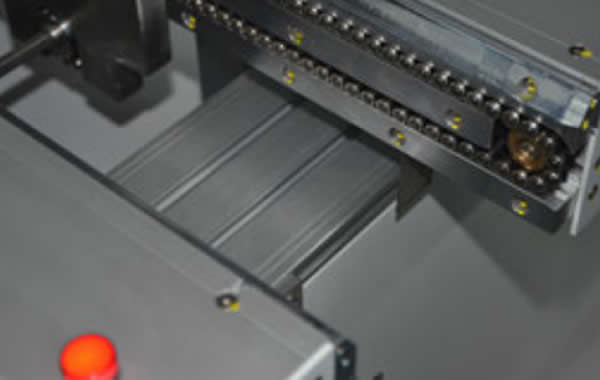

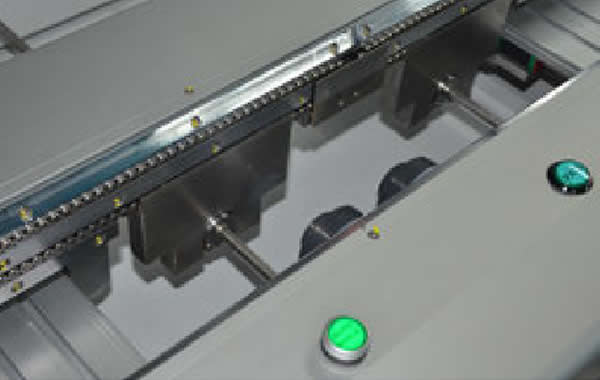

● Conveyer concept: Roller chain
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Components clearance: Top 70mm, Bottom 70mm or specify
● Power supply: 230VAC/50Hz/1Ph
● Power consumption: 150VA max
● Load bearing: Max 3kg/PCB
Options
● Signal Light.
● High-clearance on request.
● 2 segments Conveyor.
● Automatic width adjustment by touch screen.
● Exhaust sensor which forces to use air extraction.
● ESD flat belt of 10mm width instead of roller chain.
● Other options available on request.
Specifications
| Model | CYCC330L | CYCC460XL |
|---|---|---|
| Machine Dimension (L x W x H) | 1000 x 1050 x 950 | 1000 x 1180 x 950 |
| Weight | 100kg | 120kg |
| PCB length | 50mm - 470mm | 50mm - 470mm |
| PCB width | 50mm - 330mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm – 4.5mm | 0.6mm – 4.5mm |
| Fixed rail to front dimension(A) | 180mm | 180mm |
