Multi Function Buffer

Multi Function Buffer

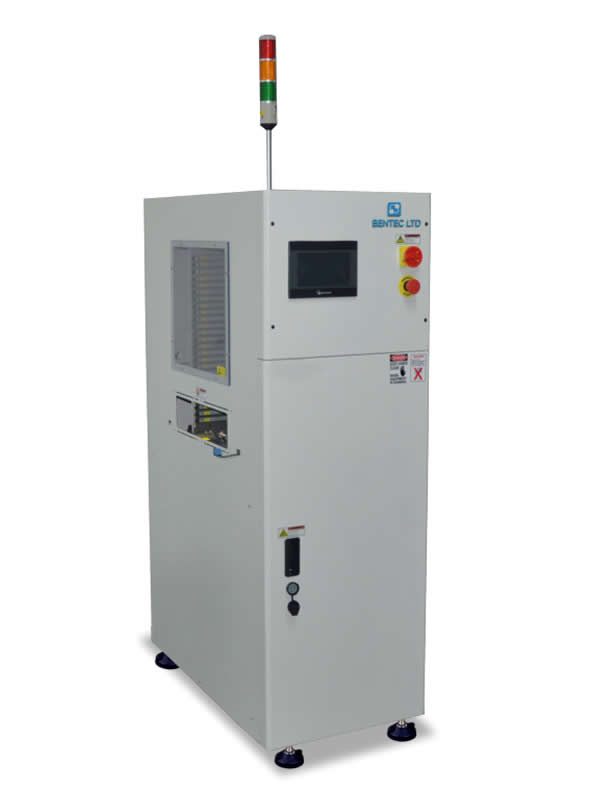

This unit allows buffering of PCB's in FIFO, LIFO, Pass-throughmode. It uses belt segments to hold the PCB over its complete lenght. When adding or extracting a PCB to/from the buffer a drive mechanism engages with the belt segment to smoothly transfer the PCB in or out.

Standard Features

● Panasonic PLC Program control.

● Selectable FIFO, LIFO and by-pass mode.

● Selectable pitch settings.

● Enclosed construction improve level of safety.

● The status of each slot can be changed independently.

● Conveyor width adjustment using hand wheel.

● Threshold signal to protect PCB's in upstream oven.

● User friendly touchscreen control panel.

● Towerlight display for machine status.

● SMEMA compatible.

  • Optional
  • Optional
  • Optional

Technical Specifications

● Transport height: 950mm ±30mm

● Transfer direction: Left to right

● Operation side: Front of the machine

● Fixed rail: Front of the machine

● Interface: SMEMA

● Conveyer concept: ESD flat belt

● Belt speed: 0.5-20m/min adjustable

● PCB edge support: 3mm

● Power supply: 230VAC/50Hz/1Ph

● Power consumption: 250VA max

● Air supply: 4-6 bar

● Air consumption: 15 ltr/min max

● Cycle time: ±15 seconds

● Pitch distance: 20mm or specify

● Buffer capacity: 25 PCBs or specify


● Reject mode for buffering bad board.

● Additional PCB boards capacity.

● Automatic conveyor width adjustment.

● Cantilevered input- or output conveyor (length 500mm).

● Other options available on request.

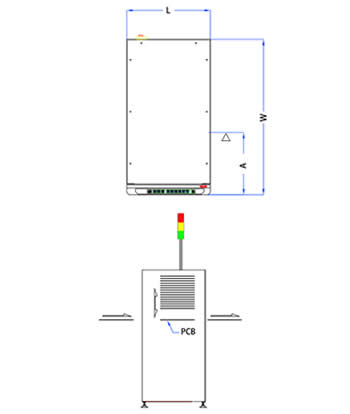

Model STC330L STC460XL
Machine Dimension (L x W x H) 485 x 950 x 1680 650 x 1150 x 1680
Weight 150kg 210kg
PCB length 50mm - 380mm 50mm - 530mm
PCB width 50mm - 330mm 50mm - 460mm
PCB Thinckness 0.6mm - 4.0mm 0.6mm - 4.0mm
Fixed rail to front dimension(A) 270mm 270mm
