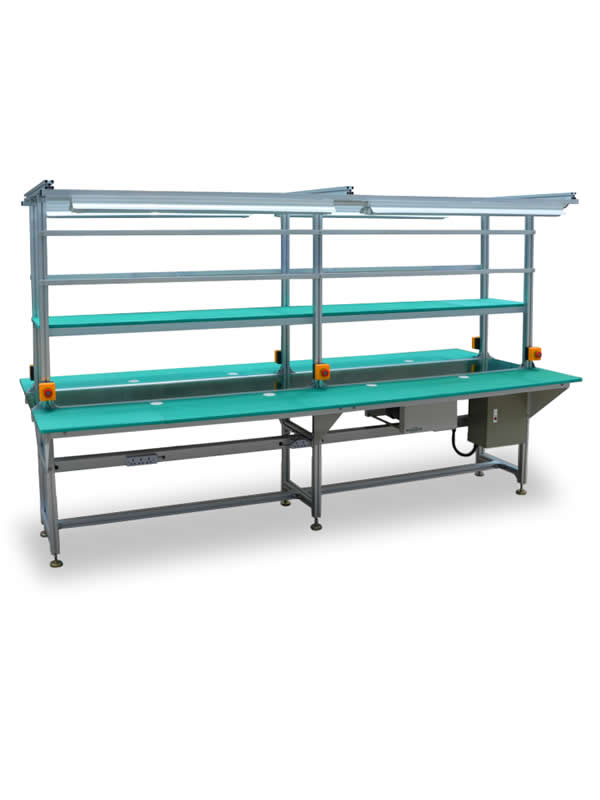

ESD Belt Conveyor

ESD Belt Conveyor

This unit is used to transport's PCB and pallets for an electronic production assembly line.

Standard Features

● Aluminum conveying guide rail.

● 400mm width ESD belt.

● Conveying motor driven by invertor.

● Equipped with LED light.

● Equipped with multifuction socket.

● Equipped with process card bracket.

● Equipped with tool storage plate.

Technical Specifications

● Transport height: 800mm ±20mm or Specify

● Transfer direction: Left to right

● Operation side: 2 sides of the machine

● Conveyer concept: ESD belt

● Belt speed: 0-5m/min adjustable

● Power supply: 230VAC/50 Hz/1 Ph

● Power consumption: 400VA max. or specify

Options

● Manual stop switch button.

● ESD ground socket.

Options

Specifications

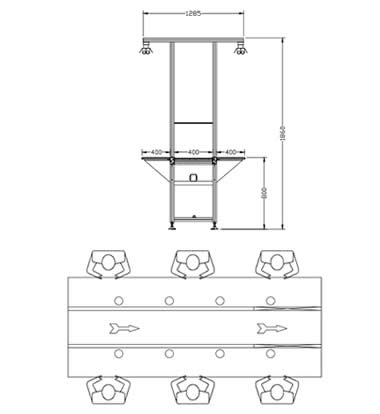

Model BC-3000
Machine Dimension (L x W x H) 3000 x 1285 x 1860
Weight 85kg
PCB width Max 400mm
