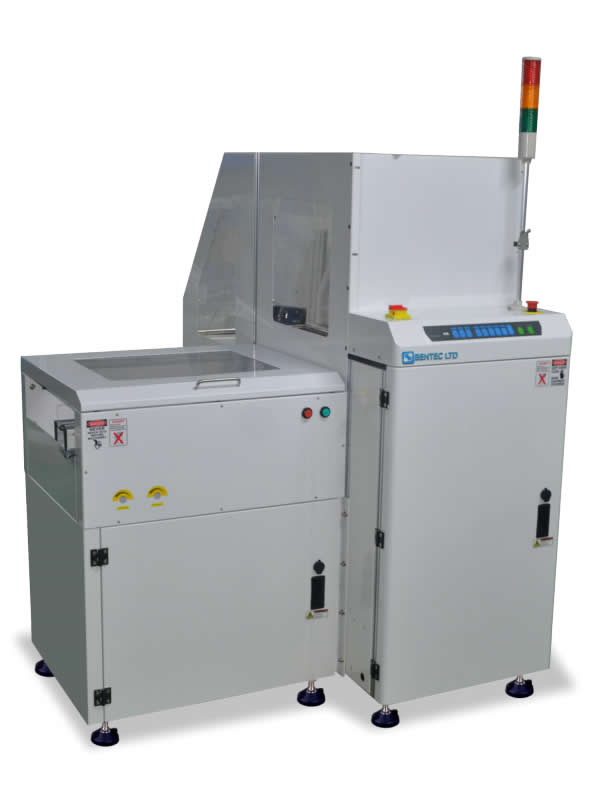

The single magazine buffer can be used as a mid-line loader or unloader, as a LIFO buffer or as a reject buffer.
● 5 operation modes available:
Buffer mode (LIFO)
● Panasonic PLC Program control.
● Selectable pitch settings.
● Dual function pusher conveyor.
● Towerlight display for machine status.
● Additional mgazines buffing capacity available upon request.
● Exchange magazine from the rear of the machine.
● Automatic magazine alignment by upper- and lower pneumatic lamping.
● Regulated pressure on attached pneumatic pusher.
● Pusher position adjustable to centre of the magazine.
● SMEMA compatible.
● Transport height: 950mm ±20mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 16m /min
● PCB edge support: 3mm
● Power supply: 230VAC/50Hz/1Ph
● Power consumption: 500VA max. or specify
● Air supply: 4-6 bar
● Air consumption: 15 ltr/min max.
● PCB loading time: ±6 seconds
● Pitch distance: 10.20.30.40mm pitch or specify.
● Max. total magazine weight: 50 kg each
* or specify
● Additional magazine capacity.
● Servo drive upgrade for shortened cycle time and allowed FIFO mode.
● Other options available on request.

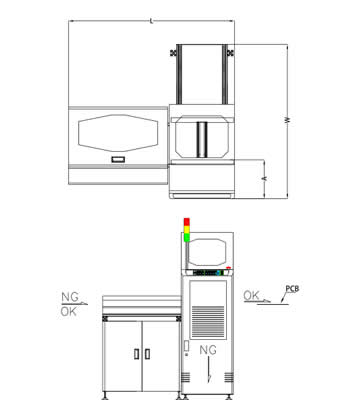

|Machine Dimension (L x W x H)||1245 x 1175 x 1600||1460 x 1258 x 1600||1635 x 1450 x 1600||1635 x 1530 x 1600|
|PCB length||50mm - 330mm||50mm - 445mm||50mm - 530mm||50mm - 530mm|
|PCB width||50mm - 250mm||50mm - 330mm||50mm - 390mm||50mm - 460mm|
|PCB Thinckness||0.6mm - 4.5mm||0.6mm - 4.5mm||0.6mm - 4.5mm||0.6mm - 4.5mm|
|Magazine Dimensions (max.)||355 x 320 x 563||460 x 400 x 563||535 x 460 x 570||535 x 530 x 570|
|Fixed rail to front dimension(A)||270mm||270mm||270mm||270mm|
