Telescopic Gate Conveyor

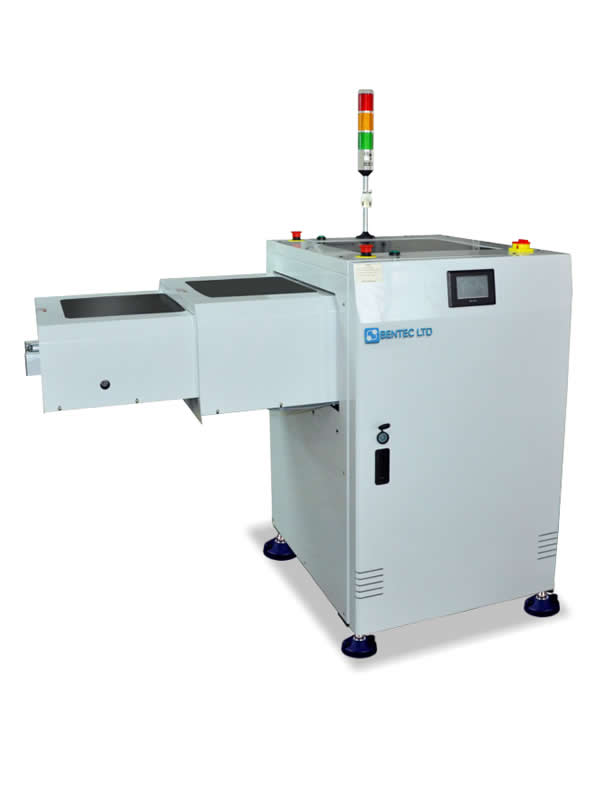

The unit provides a 'normal open' passage in a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCB to the downstream machine.
Standard Features
● Panasonic PLC Program control.
● Fully enclosed design.
● Normal Opened.
● Electrically driven for smooth extension and retraction.
● Automatic width adjustment (set in touchscreen).
● SMEMA compatible.
Technical Specifications
● Transport height: 950mm ±30mm
● Transfer direction: Left to right
● Operation side: Front of the machine
● Fixed rail: Front of the machine
● Interface: SMEMA
● Conveyer concept: ESD flat belt
● Belt speed: 0.5-20m/min adjustable
● PCB edge support: 3mm
● Components clearance: Bottom 30mm or specify
● Power supply: 230 VAC/50 Hz/1 Ph
● Power consumption: 100VA max. or specify
● Machine cycle time: ± 16 seconds
● Passageway: 750mm or specify
● Load bearing: 1.5kg/PCB
Options
● Passageway length is customized
● Normal closed operation.(750mm passage way)
● Other options available on request.

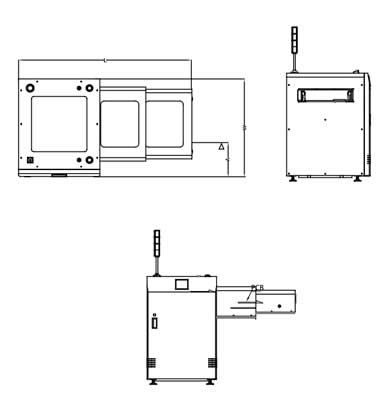

Specifications
| Model | CYT330L | CYT460XL |
|---|---|---|
| Machine Dimension (L x W x H) | 1500 x 730 x 1300 | 1500 x 860 x 1300 |
| Weight | 150kg | 180kg |
| PCB length | 50mm - 457mm | 50mm – 530mm |
| PCB width | 50mm - 330mm | 50mm - 460mm |
| PCB Thinckness | 0.6mm – 4.5mm | 0.6mm – 4.5mm |
| Fixed rail to front dimension(A) | 258mm | 258mm |
