Wave Solder Unloading Conveyor

Wave Solder Unloading Conveyor

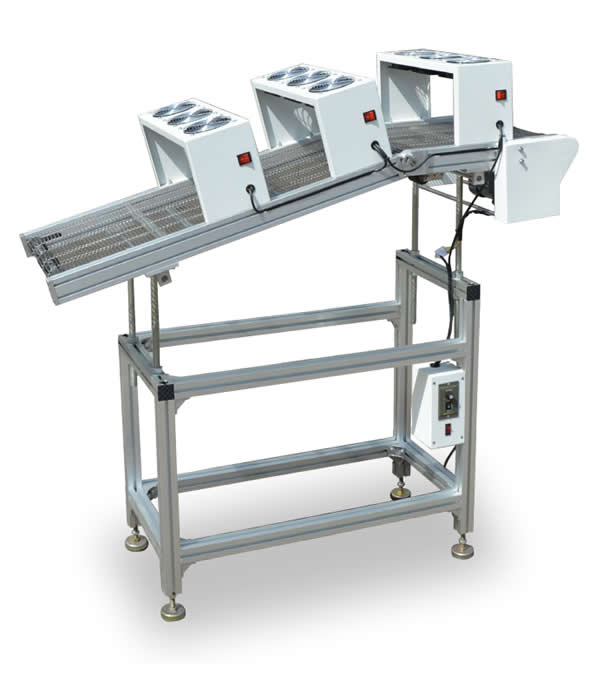

This conveyor is used to unload PCB’s or pallets from a wave soldering machine with adjustable angle. Decline section presents PCB/pallet at standard height to downstream machine.

Standard Features

● Aluminum conveying guide rail.

● 400mm belt.

● Adjustable speed.

● Adjustable angle.

● Equipped with 2 groups of cooling fan.

Technical Specifications

● Transport height: 1150±50mm

● Transfer direction: Left to right

● Fixed rail: Front of the machine

● Interface: None

● Conveyer concept: ESD belt

● Belt speed: 0-2m/min adjustable

● Power supply: 220VAC/50 Hz/1 Ph

● Power consumption: 200VA max


● Mesh Belt instead of ESD Belt.

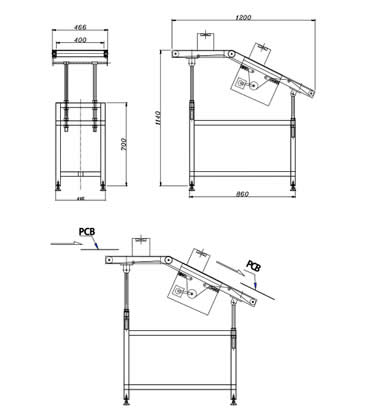

Model MWN-1300
Machine Dimension (L x W x H) 1300 x 485 x 1300
Weight 85kg
PCB width Max 400mm
